Downloading from a Tester using a USB-PC Cable
This guide will take you through the steps to download your data from your tester into the PATorganiser software
Turn on your PAT Tester
1. Go to the menu/options
2. Select Download to 'USB-PC Cable'
5. Add or alter the filename in the 'Filename' field
Connect the USB lead between the PC and Tester
1. Connect your pat tester to your PC with the USB cable it came with
2. Download the data according to the instructions on you tester model.

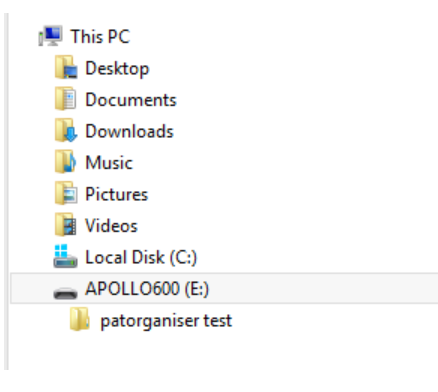

3. An additional drive (for example APOLLO600 E:) will now appear on your PC. This can be viewed using "Windows Explorer
Downloading the data

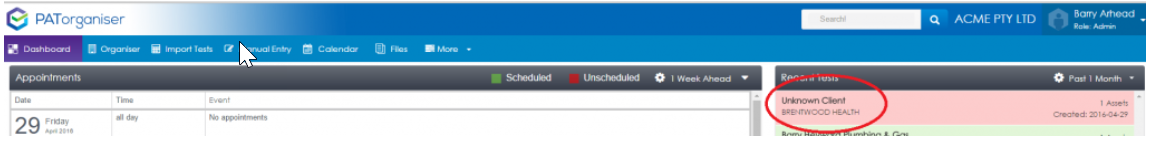

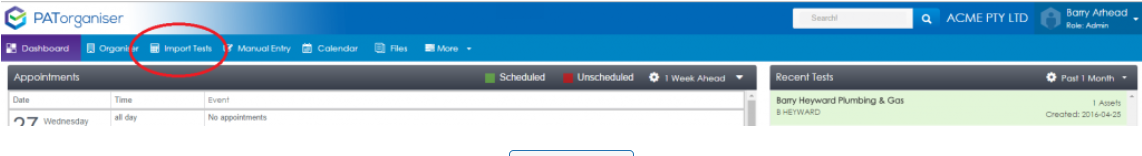

Open PATorganiser, and select "Import Tests" from the upper menu.

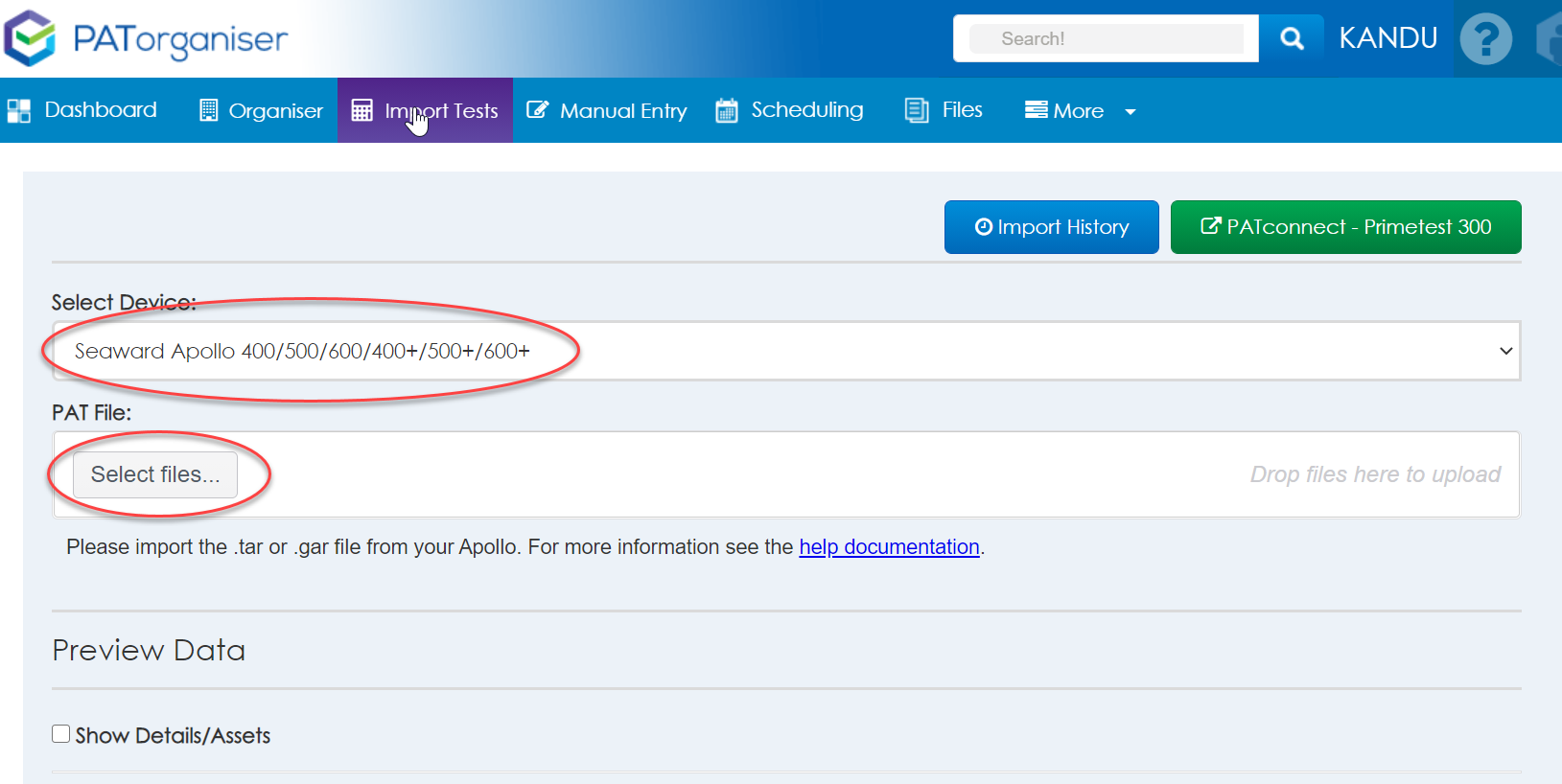

- Select your device from the Device drop down menu.
- Select Files
Navigate to where your file is stored on your computer or tablet, in this case under APOLLO600(E:) and select Open.
Once you've Previewed the Data, use the import test button. A green pop up notice will indicate the import has been successful.
Your recent tests are now transferred to PATorganiser (you may need to refresh your browser for these tests to show immediately)
